The stone sits in the lower pole. The scope is already deflected as far as it will go, the nurse is holding irrigation at 100 mmHg, and the fiber you opened twenty minutes ago is sitting in the working channel, quietly eating 20 degrees of deflection. This is the part of the case no laser console display tells you about.

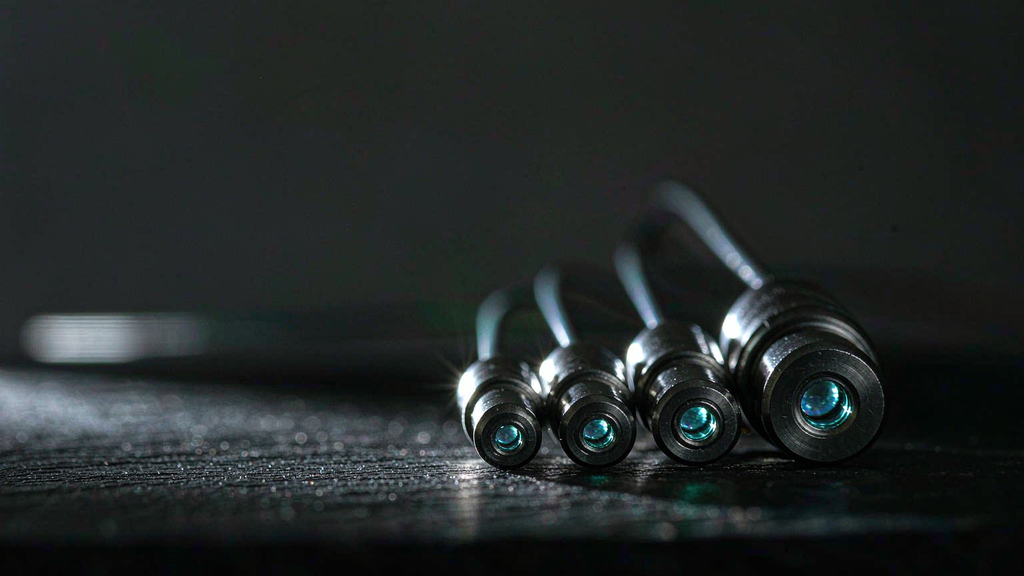

Fiber diameter is the single most consequential consumable decision in ureteroscopic lithotripsy, and in most departments it gets decided by whatever is on the shelf. That is worth correcting, because the four standard holmium laser fiber sizes — 200, 272, 365 and 550 µm — are not interchangeable grades of the same product. Each one trades access against power, and each one has a documented failure mode once it is pushed outside its range.
What follows is the engineering and bench data behind all four diameters, followed by a selection sequence you can hand to a resident. If you want the short version first: let the stone’s location pick the core, then let the laser console set the ceiling.
What the number on the label actually measures
A fiber sold as “272 µm” has a core of 272 µm, a cladding slightly larger — commonly around 300 µm — and a jacket that sets the outer diameter. That third number, not the one printed in large type, decides whether the fiber fits your scope, how much irrigation survives, and how much deflection you keep.
It is also the number that separates one supplier’s holmium fiber from another’s. A 272 µm core built to a 420 µm outer diameter leaves a little more working-channel cross-section than the ~450 µm typical of the size class — a small margin, but the kind that shows up as visible irrigation at the point where the field starts to cloud.
Three relationships do most of the work.
Energy density scales with the square of the core radius. A 200 µm core concentrates the same pulse into less than one-third the area of a 365 µm core. That is why the physical effect on stone — crater width, dusting rate — tracks energy density rather than total joules delivered. In calcium oxalate monohydrate stones, a controlled comparison at equal total energy found the 272 µm and 365 µm fibers produced equivalent mass loss at 0.2–0.5 J per pulse, while at 1.0 J and above the 272 µm fiber was prone to damage and delivered less energy downstream — a reminder that concentrating energy works until it destroys the delivery path (Teichman et al., J Urol 1998).
Irrigation falls off steeply as the fiber grows. Bench measurements across multiple ureteroscopes found flow through the working channel dropping roughly with the fourth power of fiber diameter. On a case where visibility matters more than pulse energy — every dusting case, in other words — the difference between a 200 µm and a 365 µm fiber is the difference between watching dust swirl and watching a milky field.
Deflection is a consumable too. Inserting a laser fiber into a flexible ureteroscope costs you active deflection, and the cost is diameter-dependent. In a five-scope bench study, a 272 µm fiber reduced active deflection by 12 to 32 degrees — an average of 22.3 degrees, gone before the first pulse (Marquez et al., J Urol 2005). A separate comparison found the loss ranged from 7–16% with a 200 µm fiber versus 18–37% with a 365 µm fiber (Kuo et al., J Endourol 1998). If you have ever abandoned a lower-pole calyx “because the scope wouldn’t reach,” the fiber may have been the reason.
The four holmium fiber sizes, and what each is genuinely for
200 µm — access when the anatomy is the problem
This is the fiber you choose when the anatomy is the problem: lower-pole calyces, a tight infundibulum, a narrow proximal ureter in a small patient, or any case where you expect to work at the extreme of the scope’s deflection. You are buying 7–16% deflection loss instead of 18–37%, and keeping more irrigation than any other solid-core option.
You pay for it in two ways. First, per-case cost: 200 µm fibers carry a price premium, and an early Duke comparison recommended reserving them for intrarenal stones where maximum deflection is actually required (Kuo et al., 1998). Second, energy headroom: the same study found the ideal settings for small fibers to be under 1.0 J and 5–10 Hz, and in a phantom model at 0.6–1.0 J the 200 µm fiber performed poorly compared with 365 and 550 µm (Calvano et al., J Endourol 1999). Run a 200 µm core at fragmentation energies and you will spend the second half of the case stripping a burnt tip.
One practical note on sourcing: in many ranges the 200 µm core sits on the bare fiber line — all-silica, SMA or FC terminated, typically rated around 30 W — rather than on the holmium-specific line, which often starts at 272 µm. That distinction matters when a department standardises. A 200 µm fiber is the exception you stock for lower poles, not the default you reorder by the box; if you need it in volume, ask for it as an OEM core size rather than assuming the catalogue carries it.
272 µm — the working compromise
The 272 µm is the holmium laser fiber most flexible ureteroscopists reach for first: small enough to preserve most of your deflection and irrigation, large enough to survive real dusting parameters. Its documented ceiling is the useful part. Up to 0.5 J per pulse it matches 365 µm on stone mass loss; from 1.0 J upward it degrades, transmits less energy, and fragments less. In the original energy-density work, the authors concluded that 272 µm is indicated at less than 1.0 J per pulse, specifically for small-caliber scopes or when maximum flexible deflection is needed (Teichman et al., 1998).
Modern dusting practice — 0.2–0.4 J at 50–80 Hz, the range named in the 2025 EAU urolithiasis guideline — sits comfortably inside that envelope. Which is why 272 µm has quietly become the default dusting fiber on holmium platforms, and why so many “my fiber stopped cutting” incidents turn out to be a 272 µm fiber running at 1.2 J.
On the hardware side, the specification to check is the power ceiling relative to your settings, not just the diameter. A fiber such as the HS-272/420-3.0 — 120 W at 2100 nm, standard SMA905 connector with air gap, 3 m standard length — has enough headroom that a 1.0 J miss-setting is a clinical error rather than a hardware limit. That matters: when the fiber is the failure point, the operator never learns the setting was wrong. When the fiber has margin, the case fails visibly at the console instead of silently at the tip.
365 µm — the default answer for most stones
If the stone is in the ureter and you are working through a semi-rigid scope, this is the holmium fiber to open. Little deflection is required to reach ureteral calculi, so the 18–37% deflection penalty is irrelevant, and the larger core handles fragmentation settings — 0.5–2.0 J at 5–15 Hz per EAU 2025 — without the tip damage that limits smaller cores. In calcium oxalate monohydrate testing, 365 µm produced the greatest crater width at 1.0–1.5 J and was named “optimal for most lithotripsy applications.”
Its limits are mechanical, not optical. In a deflected flexible scope it costs you deflection and irrigation, and it is more likely to load the scope’s working channel during repeated insertions — a channel-integrity problem that shows up as a repair bill rather than a clinical event. One much-cited review of scope failures attributed roughly 70% of ureteroscope breakdowns to incorrect use of holmium laser energy, which is worth remembering next time someone pushes a large fiber through a tight channel to save a trip.
The same 120 W / SMA905 platform carries across the range: the HS-365/550-3.0 is the direct counterpart of the 272 µm above, so a department can hold one connector standard and one insertion routine while changing only the core for the day’s list.
550 µm — bulk stone work, no deflection required
Bladder stones, PCNL, anything through a rigid nephroscope or cystoscope: there is no deflection to protect, so the constraint is energy delivery and fiber life. This is where the largest holmium fiber in routine use earns its place in the stack. Bench work found 550 µm comparable in efficacy to 1000 µm and less expensive, which is why it became the standard “large” fiber in preference to the 1000 µm (Kuo et al., 1998; Calvano et al., 1999). Enucleation work — HoLEP and its thulium equivalent — is normally done with 550 µm as well.
One practical warning: check the outer diameter, not the core. A 550 µm core in a full jacket is a substantial cable — the HS-550/750-3.0 measures 750 µm outer — and not every working channel that “takes a 550” will take it with an irrigation sheath in place. The 750 µm figure is the one that decides whether the assembly passes.
The five variables that should actually drive the choice
A diameter decision made on stone size alone will be wrong about a third of the time. In practice, five variables interact.
| Variable | What it changes | Practical consequence |
| Stone location | Access difficulty, deflection needed | Lower pole → 200–272 µm; ureter → 365 µm; bladder / PCNL → 550 µm |
| Scope type | Available deflection, channel ID, irrigation | A flexible scope penalises large fibers twice — deflection and flow |
| Laser platform and settings | Maximum usable pulse energy | A 20 W console at 1.0 J has no business running a 200 µm core |
| Stone composition | Burn-back rate, required energy | COM and calcium phosphate damage tips faster than uric acid |
| Consumable economics | Cost per case, reuse policy, backup stock | 200 µm costs more; reuse changes the burn-back calculation |
The fifth variable deserves more attention than it usually gets. Fiber economics are not just purchase price. A fiber that burns back mid-case costs the replacement plus the time to re-strip and re-polish on a sterile field — and the case where it happens is always the one with the longest list waiting. Our guidance elsewhere on specifying a fiber that survives reprocessing is written for exactly that arithmetic.
Making the fiber last: settings and burn-back
Diameter gets you through the case; settings decide whether the same fiber is still usable at the end of it.
Burn-back — tip degradation from stone particles splashing back onto the fiber face — has been characterised well enough to be predictable:
- No contact, no burn-back. Bench testing found no tip degradation in fibers fired in still water without stone contact (Mues et al., J Endourol 2009, doi:10.1089/end.2009.0384).
- Pulse energy is the dominant variable. At a constant 1 kJ delivered, a 200 µm fiber showed no measurable degradation at 0.2 J × 50 Hz, small loss at 0.5–0.8 J, and the greatest loss at 1.0 J × 10 Hz — about 3 mm in the bench model (AUA abstract #1546, 2013).
- At equal average power, lower pulse energy wins. Comparing 40 W settings, 0.5 J × 80 Hz produced roughly 57–61% less tip degradation than 0.8 J × 50 Hz or 1.0 J × 40 Hz. Long pulse also degraded the tip less than short pulse at every setting tested (Levin et al., 2021).
- Stone composition matters. Calcium oxalate monohydrate, calcium phosphate and Bego stones caused markedly more burn-back than uric acid stones, and burn-back rose with pulse energy for all except uric acid (AUA abstract #2123, 2012).
- Fiber construction matters. Tip degradation varied significantly between commercially available fibers of the same nominal diameter, with some 300 µm fibers showing high burn-back alongside high energy output (Mues et al., 2009).
Two operational consequences. First, “popcorn” at distance and contact only when you intend to ablate — no contact means no burn-back. Second, the low-energy/high-frequency dusting style is not just a clinical preference; it is measurably kinder to the tip. And do not chase watts for their own sake: the 2025 EAU guideline states plainly that higher-power settings shorten active lasering time but have not been shown to improve stone-free rates or morbidity, and that complete stone removal remains the objective.
The third consequence is procedural. Tip degradation is only a case-ending event if the room has no way to correct it. A fiber stripper and a cleaver on the shelf turn a burnt tip into a two-minute correction instead of a new fiber opened from stock — and the geometry you restore is itself a variable, which is why tip design is specified rather than left to the bench.
How the thulium fiber laser changes the answer
If your department has moved to a thulium fiber laser (TFL), the diameter logic shifts, because the constraint that forced you upward disappears. TFL runs at 1940 nm with roughly four times the water absorption of holmium, and its near single-mode beam couples efficiently into cores as small as 100–150 µm. It also runs at far higher frequencies — in practice 50–500 Hz, with systems capable of more.
The clinical consequence is not cosmetic. In a prospective randomized trial of 120 ureteroscopic cases, TFL achieved a 92% stone-free rate versus 67% with Ho:YAG, with shorter operative time (49 vs 57 minutes) and less intraoperative bleeding (5% vs 22%) (Ulvik et al., Eur Urol 2022). Reductions in retropulsion are consistently reported, attributed to lower peak power and a more uniform energy distribution. A 2025 review of 13 comparative studies concluded that the advantages are procedure-dependent — most pronounced for ureteroscopy and RIRS, where irrigation, visibility and deflection are the binding constraints.
For fiber selection, that means: if you are running TFL, stocking only 365 and 550 µm wastes the platform’s main advantage. A 200–272 µm core gives you better irrigation, better deflection and finer dusting, at settings the fiber can hold. On the holmium side, note the counter-trend: pulse-modulation technologies (MOSES and equivalents) have narrowed the ablation-speed gap, so a modern Ho:YAG with a well-specified 365 µm fiber is not the obsolete combination it is sometimes presented as.
